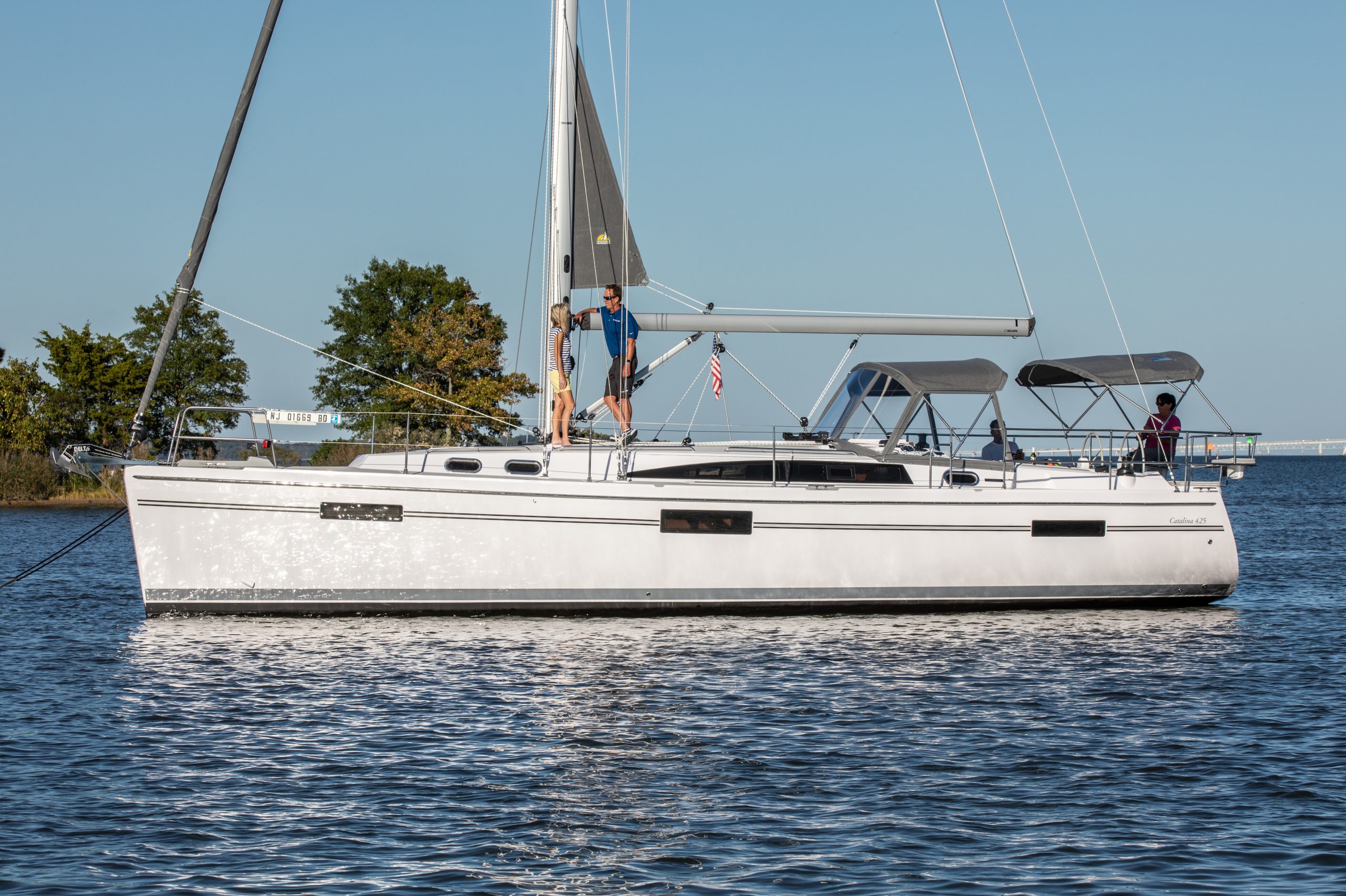

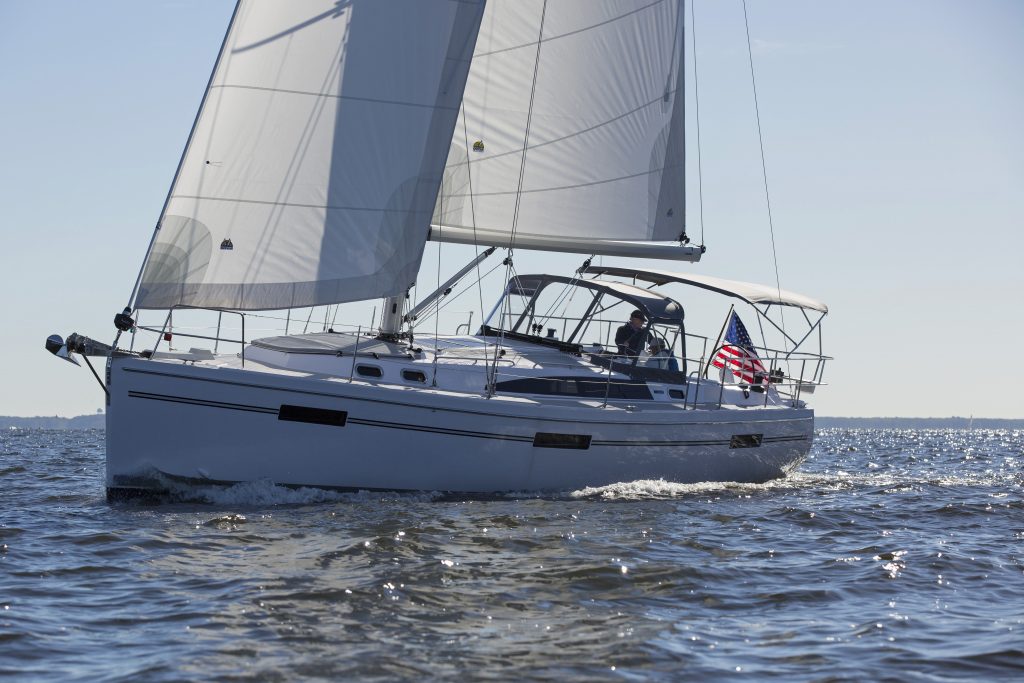

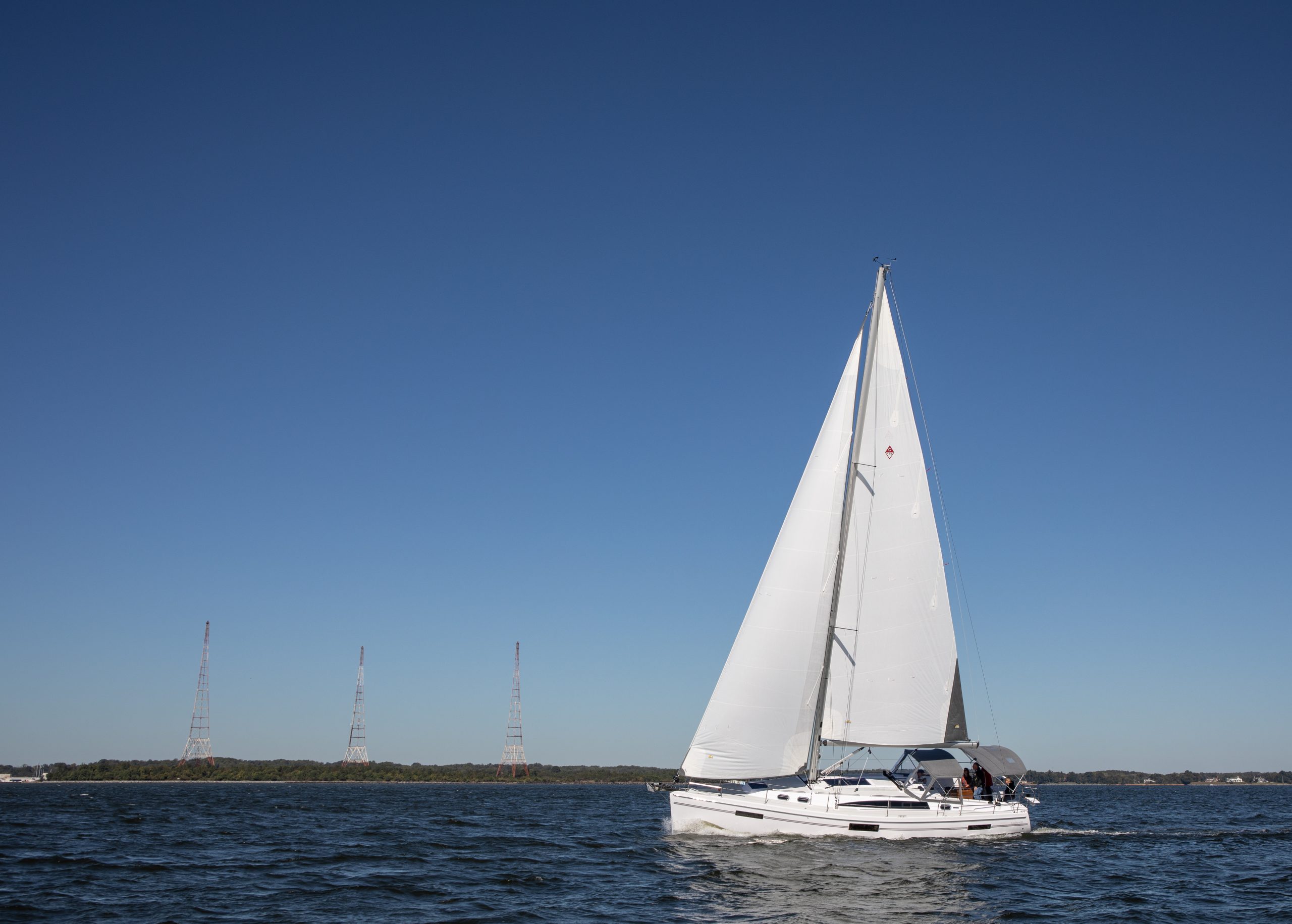

The Catalina 425 is an all-new design that assumes the position in the Catalina line held by the legendary Catalina 42. Although it is new and contemporary in styling it is designed to endure in function and aesthetics in the Catalina tradition.
The 425 incorporates all the valued hallmark Catalina features; a functional spacious cockpit, a comfortable, carefully detailed interior and all the “5 Series” featured that have redefined the Catalina brand.
425 VIRTUAL TOUR
SPECS
GENERAL DIMENSIONS
Length Overall: 43′ 6″
Length of Hull: 41′ 8″
Length at Waterline: 39’ 1″
Beam: 13′ 8″
Distance from Waterline to Masthead*: 62′ 11″
(not including lights and antennas)
WING KEEL
Draft: 5′ 0″
Ballast: 7,700 lbs
Basic Weight: 19,100 lbs
FIN KEEL
Draft: 6′ 8″
Ballast: 6,700 lbs
Basic Weight: 18,100 lbs
RIG MEASUREMENTS
I= 55′ 4″
J= 15′ 6″
P= 50′ 4″
E= 17′ 4″
100% Foretriangle: 429 ft 2
Main by Measurement: 436 ft 2
Total w/100%: 865 ft 2
Sail Area – Displacement Wing Keel: 19.4
Sail Area – Displacement Fin Keel: 20
Standard Furling Main: 464.5 ft 2
Standard Jib Self Tacking: 398 ft 2
Optional Genoa 110%: 434 ft 2
Optional Genoa 135%: 538.5 ft 2
Optional Genoa 155%: 620 ft 2
Optional UPS Spinnaker: 922 ft 2
Optiona APC Spinnaker: 1223 ft 2
TANKS & CAPACITIES
Water: Forward 50 gal, Starboard 56 gal
Water Heater: 11 gal
Total Water: 117 gal
Sanitary Holding Tank: Fwd. 31 gal, Aft. 23 gal
Total Holding: 54 gal
Fuel: Primary Tank 62 gal, Optional Auxiliary Tank 18 gal
ENGINE & CONTROLS
Yanmar 4JH57CR, 57 mhp @3000RPM
Common Rail, Electronic Diesel
PROPELLER
3 Blade Michigan MP3 18×14
1 1/4″ S.S. Shaft
STEERING
Twin Edson Performance Pedestals with 32″ Stainless Wheels.
Single Lever Engine Controls on Starboard Cockpit Coaming.
WINDLASS & CHAIN
Quick Rider 1000 with 5/16″ Chainwheel Gypsy for 5/16″ High Test Gd 40
or BBB Gd 30 Chain and/or 1/2″ – 5/8″ Rope
WINCHES
Primary – 55ST EVO Lewmar
Cabin Top / Secondary – 45ST EVO Lewmar
